Клавишный диммер

Клавишный диммер, 1224LEDUDE – Jung

Производитель: Jung

Артикул: 1224LEDUDE

30 110 руб. в наличии
+ Купить уже в корзине: 0 шт.

Описание

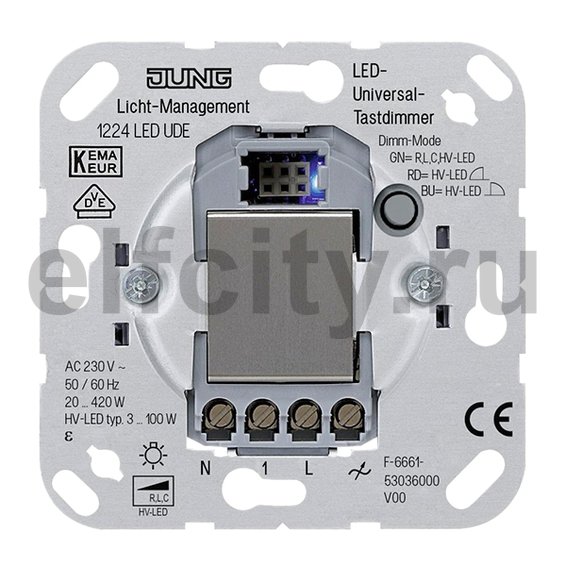

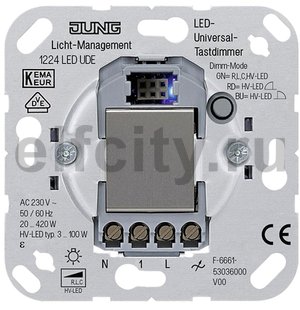

LED universal touch dimmer insert
Intended use

  • Switching and dimming of incandescent lamps, HV halogen lamps, TRONIC transformers with halogen lamps, dimmable inductive transformers with halogen or dimmable LED lamps, dimmable HV-LED lamps or compact fluorescent lamps
  • Installation in appliance box according to DIN 49073
  • Operation with suitable cover
  • When dimmable HV-LED or compact fluorescent lamps are connected, only connect lamps of one manufacturer and of the same type.
  • HV-LED and compact fluorescent lamps generate high pulsed currents, when they are operated in the leading edge phase control. Depending on the design and power rating of these lamps, the connected load of the specified values could vary.

Product characteristics

  • Device works according to the leading edge phase control or trailing edge phase control principle
  • Automatic or manual setting of the dimming principle suitable for the load
  • Display of the set operating mode by means LED
  • Device can be operated without neutral conductor
  • Switch-on via bulb-preserving soft start
  • Switch-on brightness can be saved permanently
  • Minimum brightness can be saved permanently
  • Connection of extensions possible
  • Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
  • Electronic over-temperature protection
  • Power extension possible by means of power boosters. Do not connect any HV-LED lamps or compact fluorescent lamps in combination with power boosters.

Technical data
Rated voltage: AC 230 V ~, 50/60 Hz
Stand-by power: max. 0.5 W
Power loss: max. 4.5 W
Ambient temperature: +5 ... +45 °C
Contact type: ε
Connected load at 25 °C
Power specifications including transformer power dissipation.
Operate inductive transformers with at least 85 % nominal load.
Incandescent lamps: 20 ... 420 W
HV halogen lamps: 20 ... 420 W
TRONIC transformers: 20 ... 420 W
inductive transformers: 20 ... 420 VA
When operated without a neutral conductor, the minimum load for incandescent lamps, HV halogen lamps, TRONIC transformers and inductive transformers increases to 50 W.
Dimmable HV LED lamps: typical 3 ... 100 W
Dimmable compact fluorescent lamps: typical 3 ... 100 W
ohmic-capacitive: 20 ... 420 W
capacitive-inductive: not permitted
ohmic-inductive: 20 ... 420 VA
For ohmic-inductive mixed load, maximum 50 % proportion of ohmic load. Otherwise incorrect calibration of the dimmer may result.
When operated without a neutral conductor, the minimum load for ohmic-capacitive and ohmic-inductive mixed loads increases to 50 W.
ohmic and HV LED: typical 3 ... 100 W
ohmic and CFL: typical 3 ... 100 W
Reduction of load
for every 5 °C exceededing 25 °C: −10 %
for installation into wooden or hollow walls: −15 %
for installation into multiple combinations: −20 %
Amplifiers: see power booster instructions
Connection: screw terminals
single wire: max. 4 mm2
stranded without ferrule: max. 4 mm2
stranded with ferrule: max. 2.5 mm2
Number of satellite units
Satellite insert 2-wire ref.-no. 1220 NE: unlimited
Satellite insert 3-wire ref.-no. 1223 NE: 5
unlit installation buttons: unlimited
Total length of extension unit cable: max. 100 m
Total length power cable: max. 100 m

Manufacturer: JUNG
Ref.-no.: 1224 LED UDE
